Whether you’re using thermocouple wire in the aerospace, industrial or metallurgy markets, I have little doubt that the better you understand the ‘devil is in the details’ when it comes to making the right wire design selection for your applications, the better your chances of success.
That’s why, in the past two years, we’ve address a number of topics relevant to successfully determining the right TC wire selection for any application. Here are the TOP 5:
When it comes to TC wire, there’s a veritable alphabet of calibration types available: K type, J type, T type and so on. We’re frequently asked: What do these designations mean and which type is right for a specific application?
- What do the TC wire color codes mean?

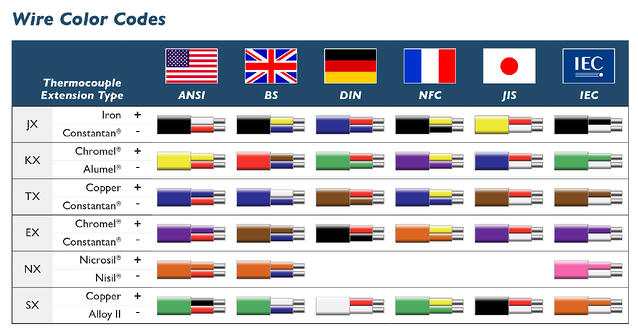

The table provided defines the TC calibration types (i.e., Type J, K, E, T, N, S) and the alloy combination for the positive (+) and negative (-) leads. The standard insulation colors for the different wire leads are also illustrated for the international wire color codes.
- 3 Basic Steps to Selecting the Right Thermocouple Wire for Your Application
When it comes to selecting the right TC wire, it’s all about temperature and accuracy. Why? Because a wire that doesn’t fit the required temperature range will not provide accurate temperature measurement. This could lead to system or parts damage. So how do you know if you’re picking the right TC wire? There are three basic elements: calibration, conductor and insulation/jacket. - Everything You Wanted to Know about Thermocouple Theory and Chemistry
(but Were Afraid to Ask)
Covers the chemical properties of various TC wires and how chemistry of the TC elements plays a vital role in TC theory as it relates to performance and results of your readings. Bottom line: A proper understanding of TC wire chemical properties translates to getting the performance you require for your application. - Top 3 Considerations when Selecting Type K Thermocouple Wire
Type K is the high temperature TC wire of choice among many customers throughout the world. The top three selection factors to keep in mind when making your selection are temperature range, TC drift and suitability for the conditions of use and expected service life.
I hope you’ve found these articles to be helpful in your TC wire selection process. We will continue to cover various topics of interest to our readers, customers and fans. If you have a question or topic you’d like us to address, please feel free to share it in the comment section below or send it directly to me at v.fedorchak@tewire.com.
I look forward to hearing from you!
